Products >> Remote Control System >> Radio Receiver for AC Motor

  • AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver
  • AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver
  • AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver
  • AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver
AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver

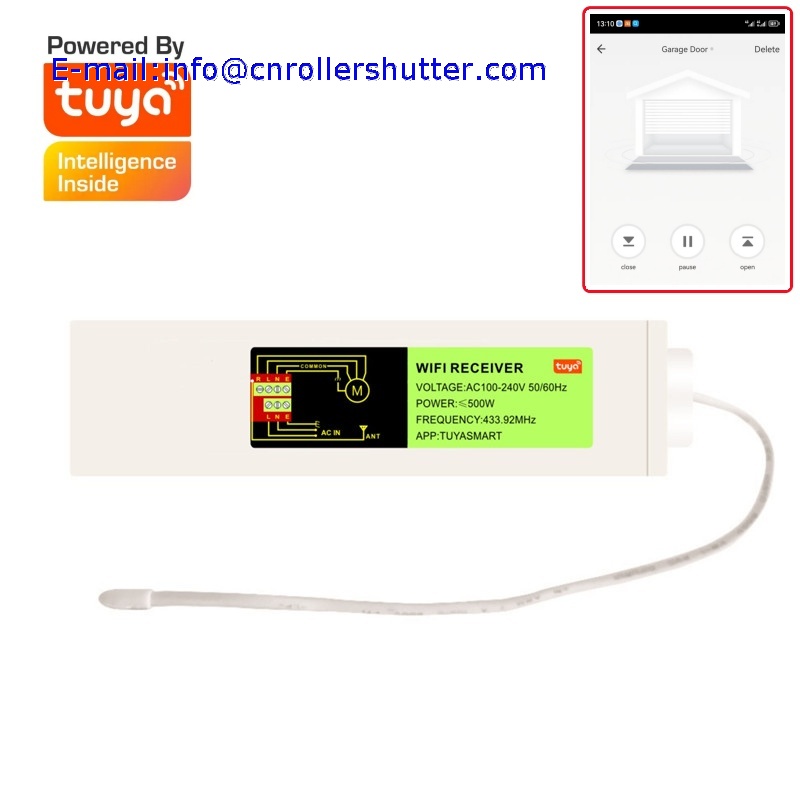

AC226-01-Wifi Roller Shutter Mini Water-proof Radio Receiver

  • Product No.:2024517101242
  • Name:Roller Shutter tuya smart radio receiver with WiFi
  • Model:AC226-01-WiFi
  • Color:White
  • Frequency:433.92MHz+2.4G
  • Channel:1
  • Input:AC100-240V 50Hz/60Hz
  • Output:AC100-240V 50Hz/60Hz
  • Size:127*32*23mm
  • Application:electric roller blinds,roller shutter,roller door,awning,motorized curtain
  • Online Inquiry

Automatic Roller Shutter Window Garage Door Built-in Mini Water-proof Tubular Motor in-line Radio Receiver Description

This external radio receiver has a transmission distance of fifty metres. As the receiver is waterproof,it is the perfect choice for outdoor roller shutter systems.This receiver provides you with stable performance and contains super anti-jamming technology.As it is small in design, it is particularly suitable for narrow spaces.
The receiver uses three systems, RF, Bluetooth and WiFi. When there is a network at the place where the receiver is installed, we can control it through the APP anywhere. When there is no network, we can control it with a remote control, or turn on Bluetooth and control it through the APP(within 15m)

AC226-01-WIFI AC Tubular Motor radio receiver specifications

1. Work with tubular motor power within 500W, UP/STOP/DOWN,dot move adn continous move change direction,mini size type, can be installed intotrack.

2. SMT automatically assembly,damp-proof craft.

3. Supertheterodyne reliable chip

4. Shock-proof relays special for motors

5.APP:Tuyasmart.

Specifications

1.Input voltage: AC100-240V 50/60 HZ

2.Receiving frequency: 433.92 MHZ+2.4G

3.Receiving sensitivity:107dB

4.Output power: ≤1*500W

5.Working temperature: –40°C~+70°C

Quality Assurance Certificates
1.12 Months Warranty
