Products >> Remote Control System >> Radio Receiver for AC Motor

  • Mini wall mounted receiver for AC tubular motor
  • Mini wall mounted receiver for AC tubular motor
  • Mini wall mounted receiver for AC tubular motor
  • Mini wall mounted receiver for AC tubular motor
Mini wall mounted receiver for AC tubular motor Mini wall mounted receiver for AC tubular motor Mini wall mounted receiver for AC tubular motor Mini wall mounted receiver for AC tubular motor

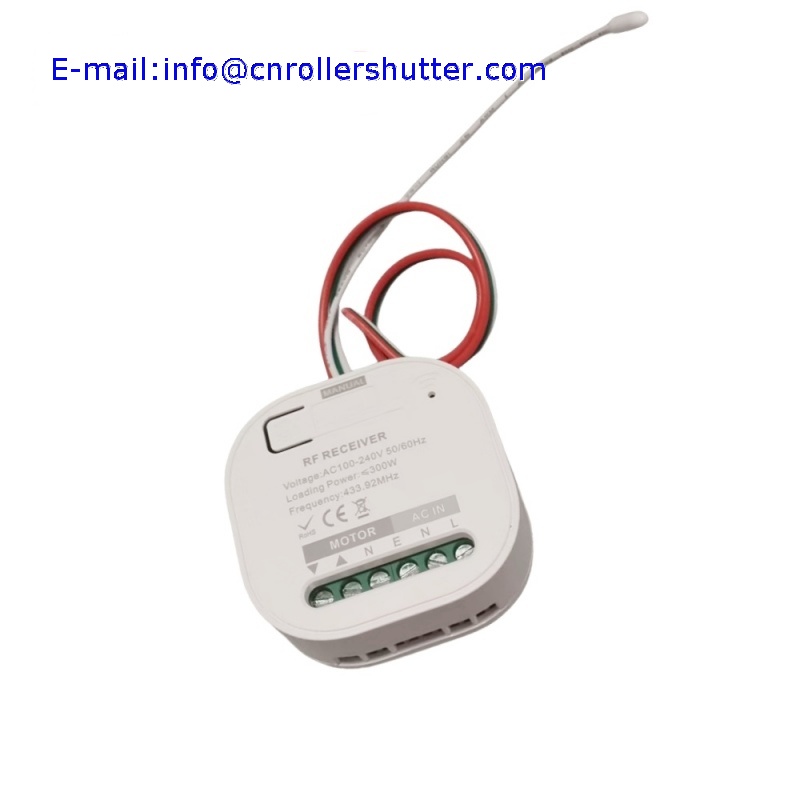

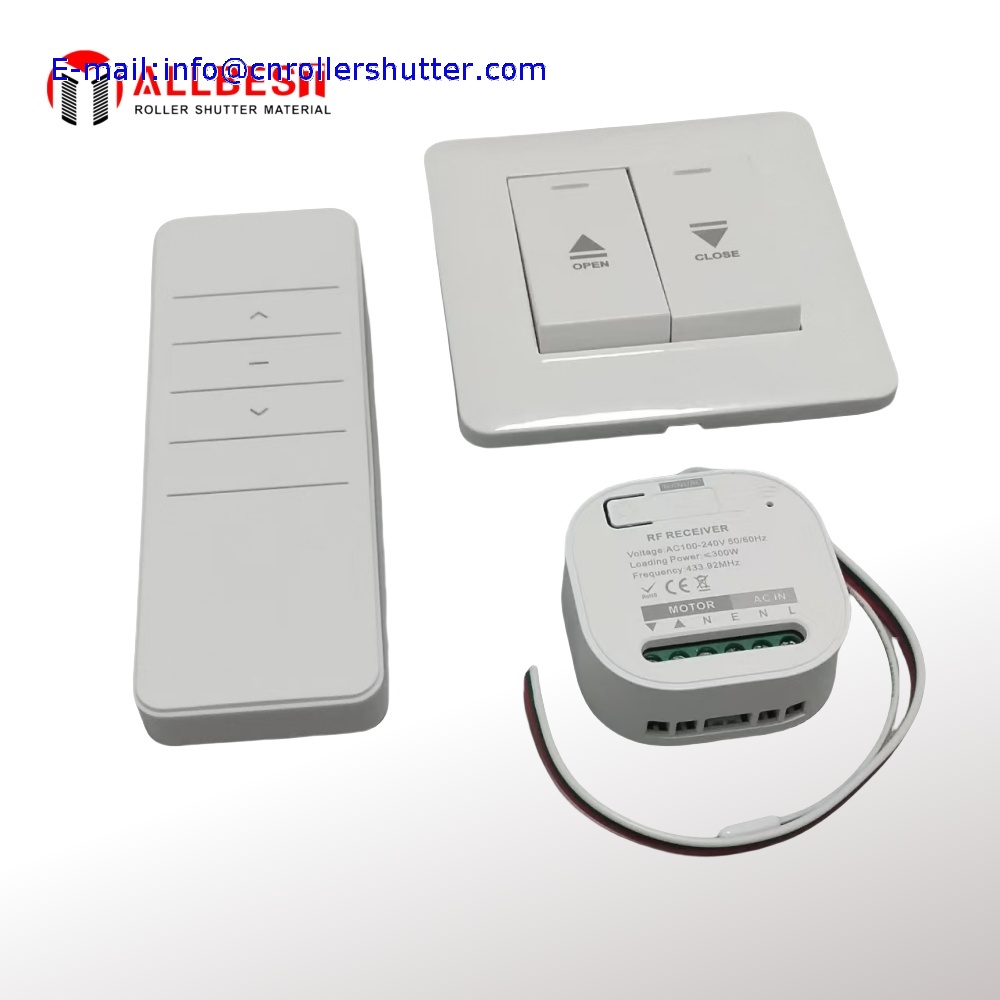

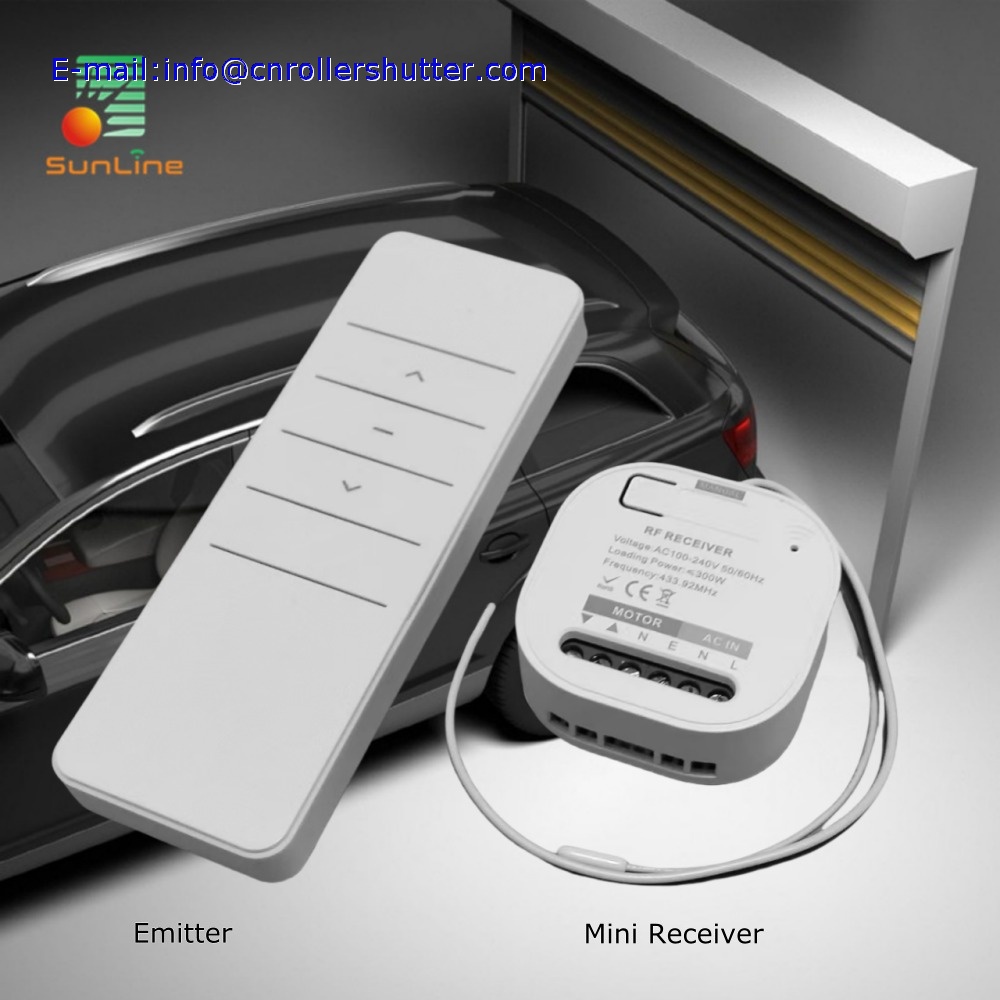

Mini wall mounted receiver for AC tubular motor

  • Product No.：20256172317
  • Name：Roller Shutter In-line radio receiver for ac motor
  • Model：AC214-01B
  • Color：White
  • Frequency：433.92MHz
  • Channel：1
  • Input：AC120 60Hz or AC230V 50Hz
  • Output：AC120 60Hz or AC230V 50Hz
  • Size：48*48*23mm
  • Application：electric roller blinds,roller shutter,roller door,awning,motorized curtain
  • Online Inquiry

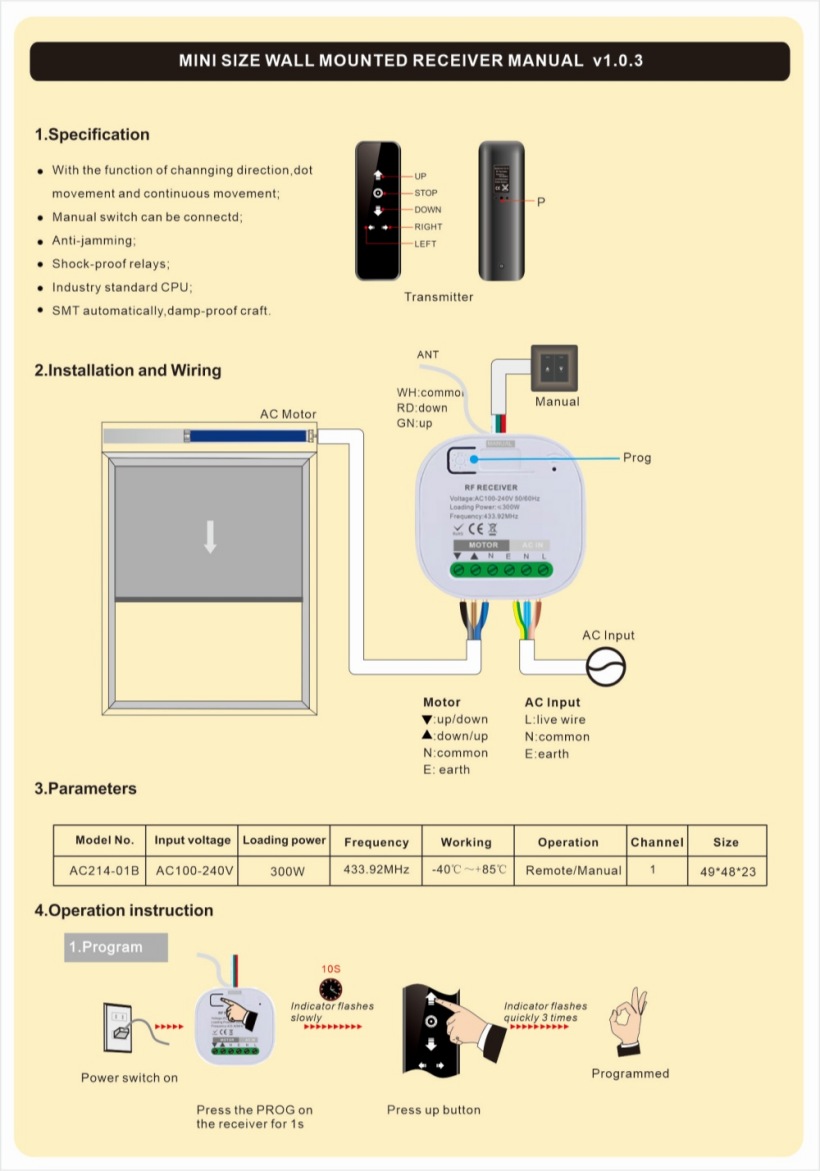

AC214-01B Wall-mounted AC Tubular Motor radio receiver specifications

Key Features:
1：**433.92MHz wireless control** with stable signal reception

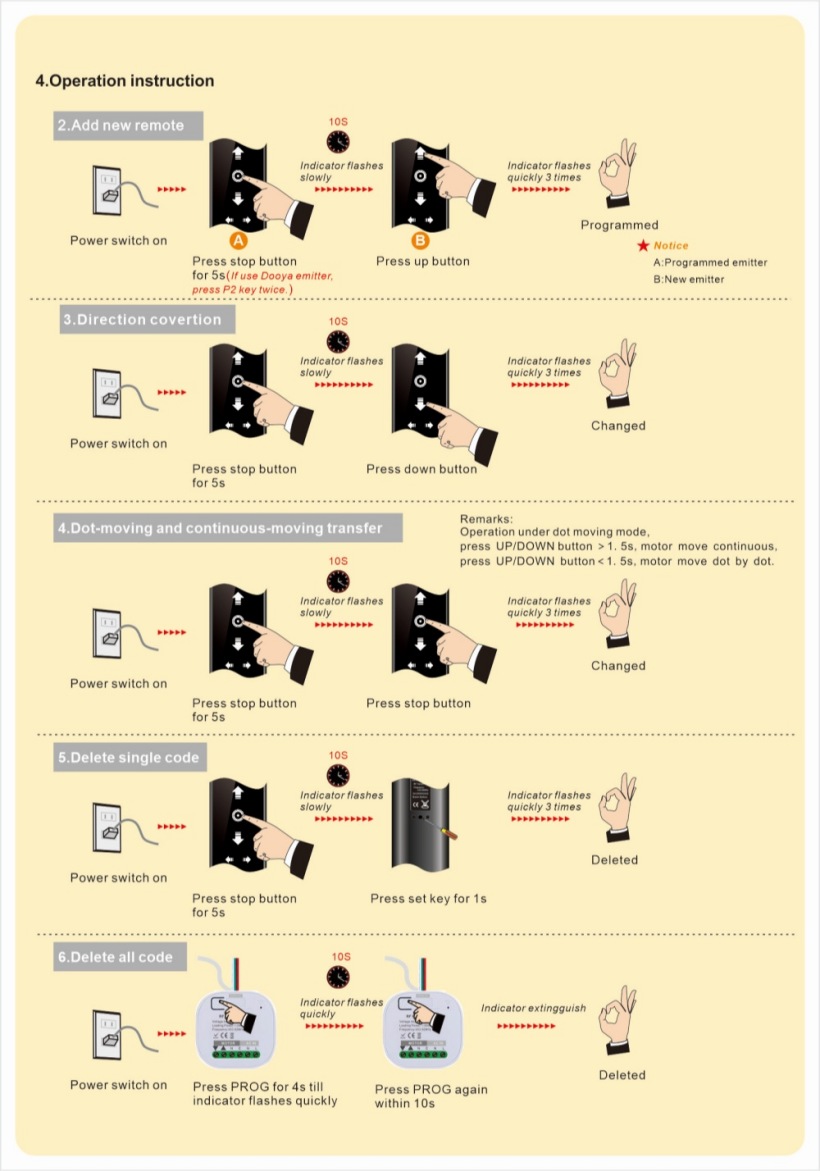

2：**Motor direction reversal** and **inching mode** for precise positioning
3：**External manual switch** compatibility for backup control
4：**Dual programmable modes** to match diverse motor setups
5：Cross-brand compatibility with **A-OK** and **DOOYA** transmitters
WhatsApp/Wechat:+86-139 7513 1061

Specifications

1.Input voltage: AC100-240V 50/60Hz

2.Receiving frequency: 433.92 MHZ

3.Receiving sensitivity:≤107dB

4.Output power: ≤1*500W

5.Working temperature: –40°C~+70°C

Quality Assurance Certificates
1.12 Months Warranty
