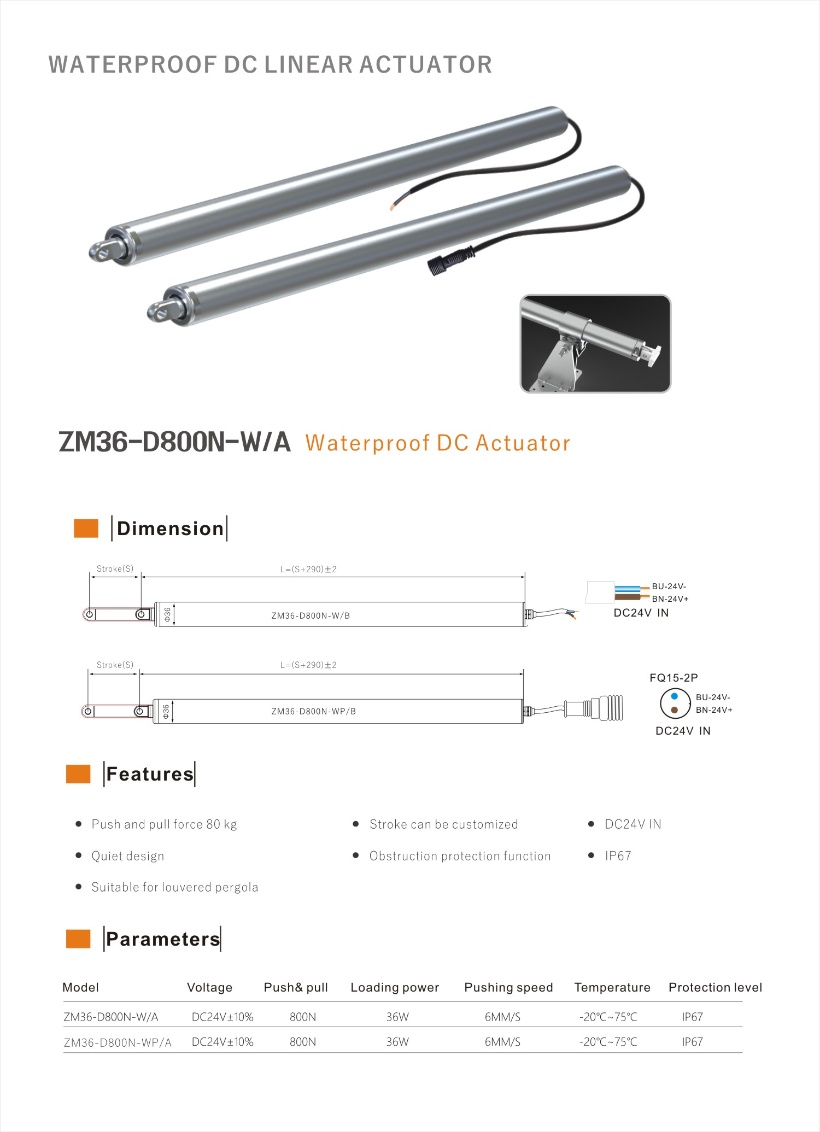

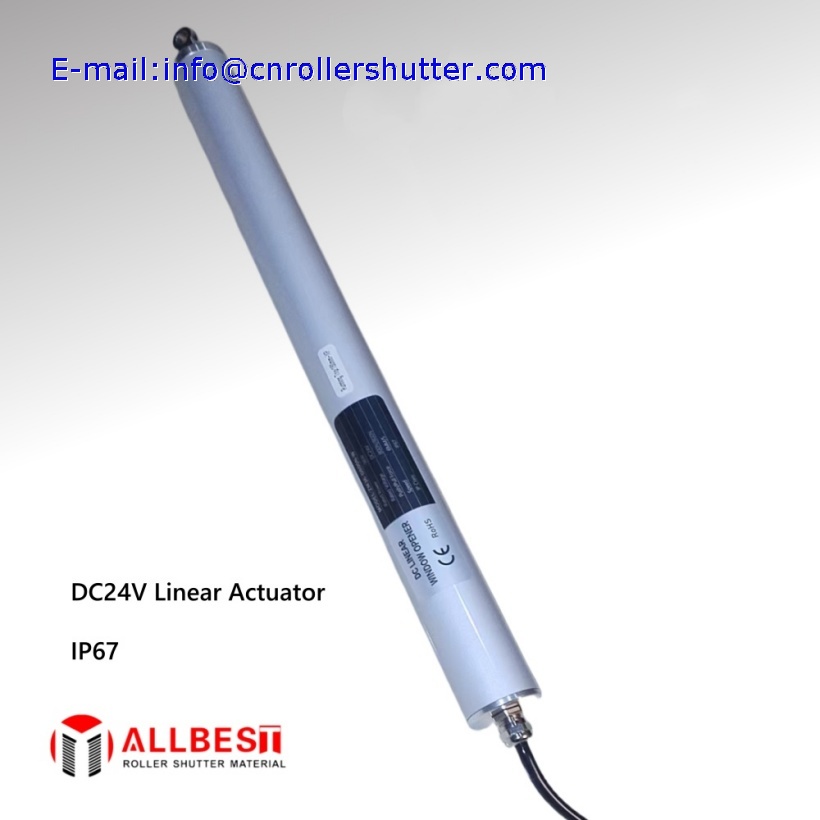

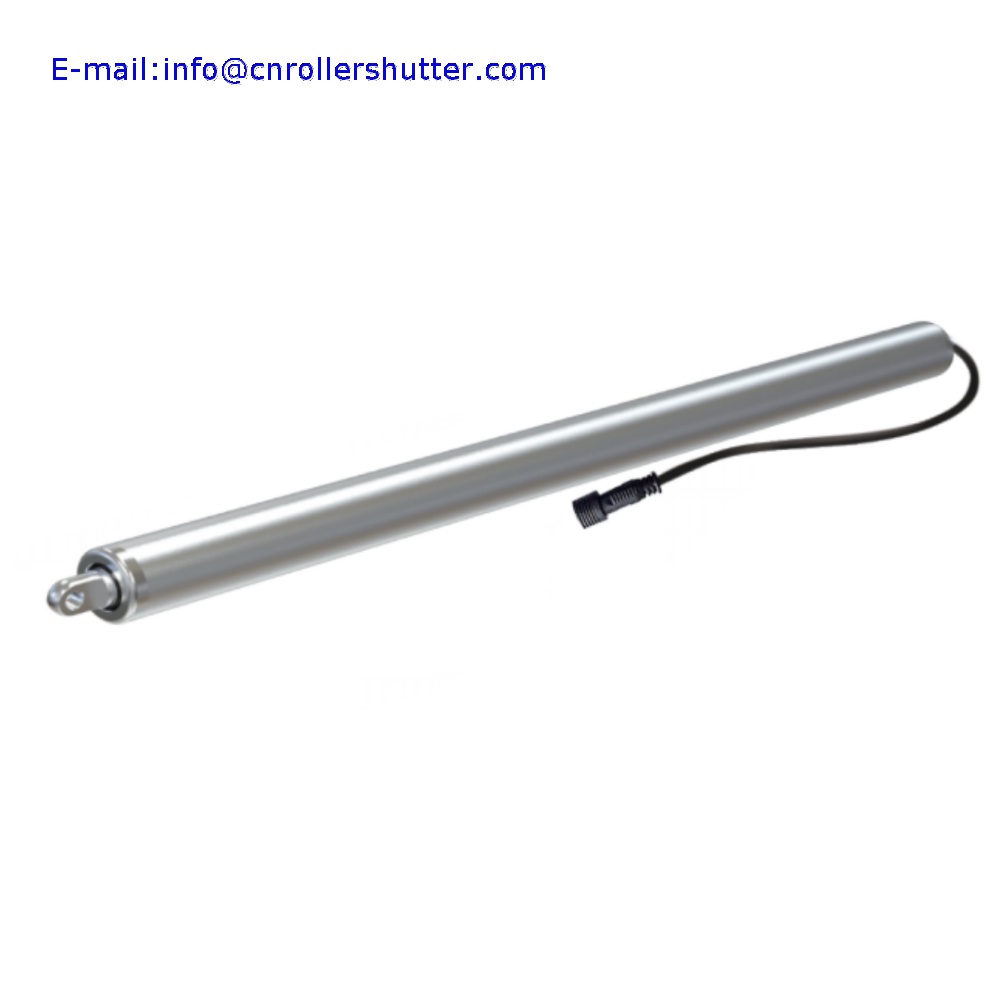

DC24V Waterproof Linear Actuator for aluminum pergola
- Product No.：20259169736
- Name：DC24V Waterproof Linear Actuator for aluminum pergola

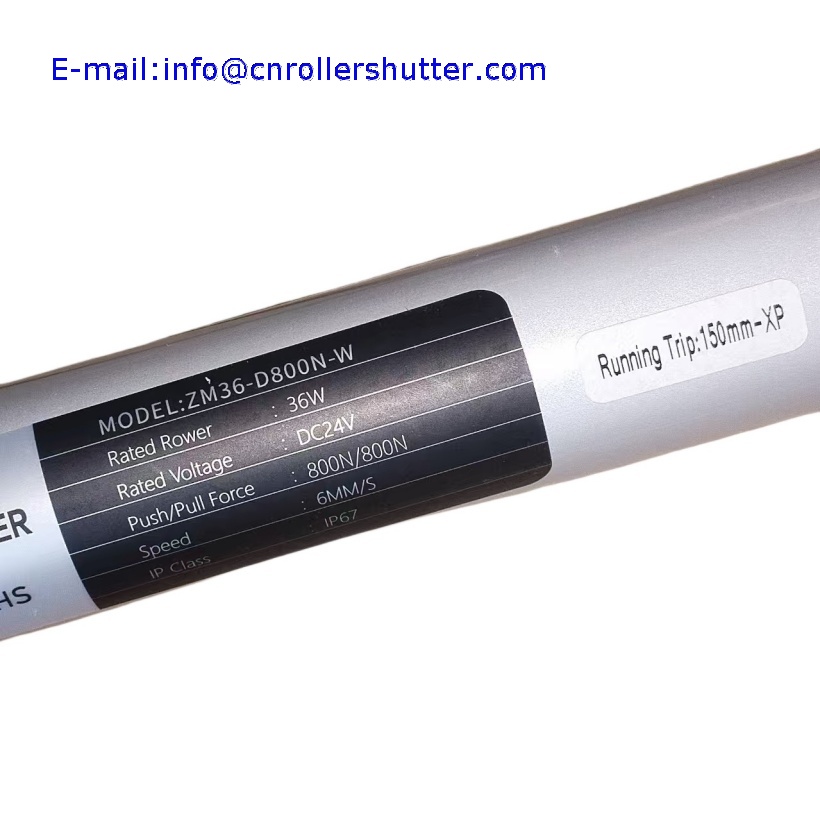

- Model：ZM36-D800N-W
- Color：Silver
- Input：DC24V
- Torque：800N
- Size：Ф36*390~490mm

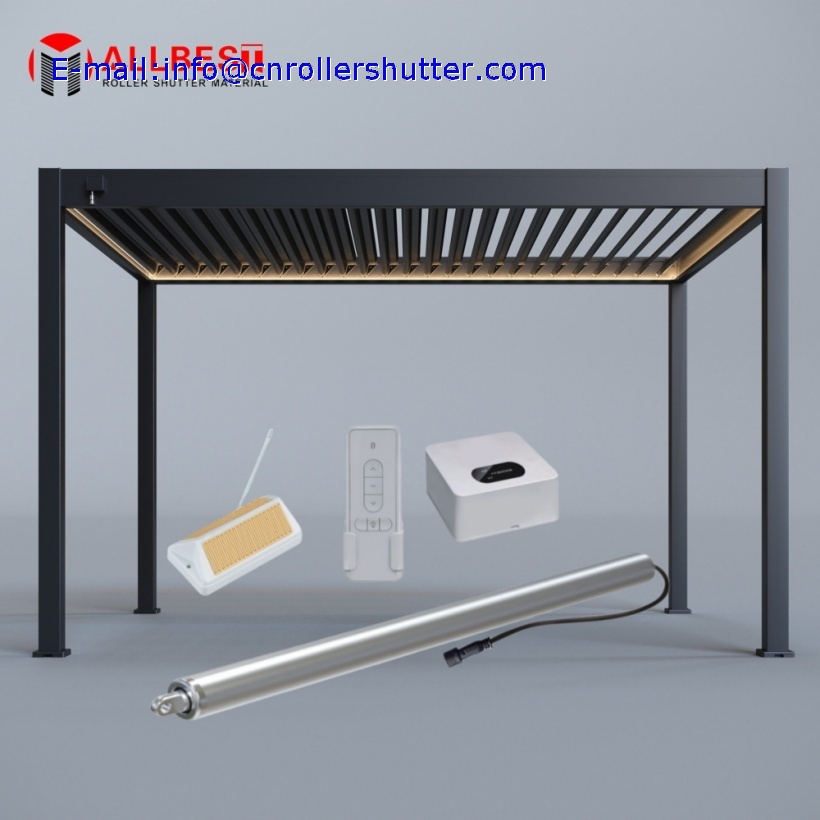

- Application：motorized louvered,skylight,sunroom,aluminum pergola
Waterproof China DC24V single electric linear window opener/DC24V single window actuator motor for aluminum louvered pergola
1. DC24V safe voltage,Can be used in conjunction with a mechanical switch, or work together through an intelligent controller.
2.Simple but delicacy design,low noise operation
4. Sandblasted oxidative surface treatment
5. Silver color standard,other colors can be customized
6. Flexible optional installation
7. Electronic overload cut off
8. Endurance tests(30,000 cycles) are carried out
Single chain window opener parameter：
Working voltage: DC24V
Max.current: 1.5A
Push/Pull Force: 800N
Stroke:100mm,150mm,200mm
Speed: 8mm/s
Protection class:IP67
Actuator size:
100mm stroke:Ф35*390mm
150mm stroke:Ф35*440mm
200mm stroke:Ф35*490mm
Work with dc motor receiver and remote，
